Reel Joins
Reel join markings as used by Holmen Iggesund are identified according to the following notation:
Iggesund Mill, Strömsbruk and Sheeting Stations
Reel joins are marked by two arrow heads, above and below each join.
Standard joins are made with a yellow non-printable slicing tape. The tape width is 50 mm and the thickness typically 0.19 mm. The adhesive is pressure sensitive giving a high cohesive strength. Joins are butt joins with no overlap and are made with a single CD strip of tape on both sides of the board. MD strips are added on the print side. Other types of tapes available on request, please contact your Holmen Iggesund representative.
Workington
Reel joins are marked by a black cross centred over each join. Joins are made with a black printable repulpable splicing tape.
The tape is 75 mm and the thickness typically 0.1 mm. The adhesive is pressure sensitive giving a high cohesive strength. Joins are butt joins with no overlap and made with a single CD strip of tape on both sides of the board. (note MD straps are not added).
Restrictions affecting Reel Diameter
| Reel width | Diameter | Wrapping |
| Iggesund safety restrictions | ||
| < 460 mm | Double packed reels | |
| 460 - 479 mm | < 1101 mm | Single packed reels |
| 480 - 489 mm | < 1351 mm | Single packed reels |
| 490 - 501 mm | < 1551 mm | Single packed reels |
| > 501 mm | < 1800 mm | Single packed reels |
| > 1800 mm | Double packed reels | |
| Workington safety restrictions | ||
| < 400 mm | > 900 mm | Reel will be multipacked |
| > 400 mm | 900 mm up to 1800 mm | If diameter is < 3 times the reel width = single packed. |
| If diameter is between 3 and 3.5 times the reel width = single or multipacked. System will allow both options. The customer decides. | ||
| If the diameter is > 3.5 times the reel width = multipacked. | ||
| Strömsbruk safety restrictions | ||
| < 600 mm | Max dia 2.3 x width | Single packed |
| Larger diameters will be double packed. | ||
| ≥ 600 mm | Max dia 2.6 x width | Single packed |
| Larger diameters will be double packed. | ||

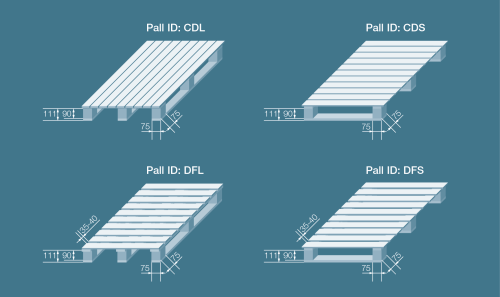

Pallets for sheet deliveries
The most frequent pallet types for sheet deliveries used by Holmen Iggesund.
| Code | Version | Description |
| CD || 2CD* | L | CDL || 2CDL (close deck, runners long) |
| CD || 2CD* | S | CDS || 2CDS (close deck, runners short) |
| DF || 2DF* | L | DFL || 2DFL (direct feed, runners long) |
| DF || 2DF* | S | DFS || 2DFS (direct feed, runners short) |
*It is not always possible to deliver certain sheet sizes as single pallets. The option will be twin pallets with the codes 2CDL, 2CDS, 2DFL and 2DFS.
Transport packaging
Transport packaging is used to maintain the quality of the delivered paperboard and to protect it during handling, transport and storage.
Reels have cores made from recycled paper and core plugs from particle wood. The reels are either packed with end protecting corrugated kraft board coated with a water barrier (polyethylene 15 g/m²) and stretch wrap or only stretch wrapped. The stretch film is low-density polyethylene. The labels are made of bleached kraft paper, occasionally plastic labels are used.
Pallet packs consist of pallets of 100% wood covered with a protective polyethylene sheet. The paperboard pile is protected on top by a sheet of polyethylene. The whole pallet is then shrink-wrapped with medium-density polyethylene. Labels are made of bleached kraft paper.
Ream packs are made from bleached kraft paper coated with a water barrier (polyethylene 10 g/m²). Labels are made of bleached kraft paper.
The materials used for the transport packaging meet the requirements in the EU Directive EC 94/62. For more detailed information please contact your Holmen Iggesund representative.
